SSF Spiral Quick Freezer

SSF Spiral Quick Freezer

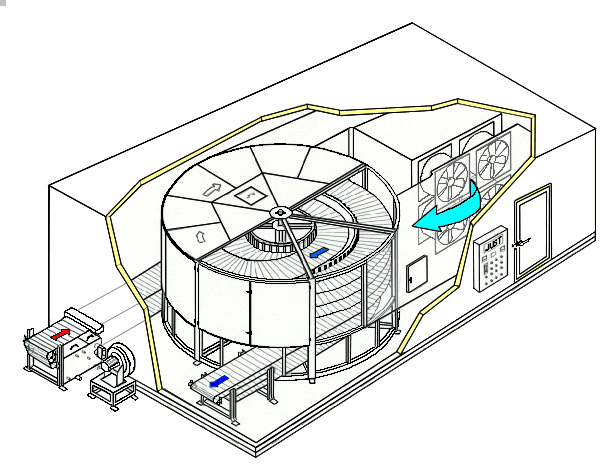

The spiral freezer is a high efficient, quick freezing machine with small floor cover and large capacity. It is mainly suitable for bread fermentation and cooling; freezing aquatic products, flour products, meat, poultry, bagged condiment, dairy products, and ice cream, etc. The capacity is 300kg/h-3000kg/h.



According to the rotary drum quantity, it can be divided into two types: DSF single-drum spiral freezer and SSF double-drum spiral freezer.

Characteristic of SSF Spiral freezer
+SSF dual spirals freezer
+DSF single spiral freezer
  1. Conveying belt adopts SUS304 high strength stainless steel spiral mesh, with a long service life.

  2. The evaporator is made of industrial aluminum alloy or stainless steel, with a great performance of heat exchange.

  3. The freezer is equipped with a conveyor turnover sensor, belt regulation sensor, and scram switch.

  4. Electric control cabinet is made of SUS304 stainless steel; if necessary the operator interface can be PLC+ touchscreen.

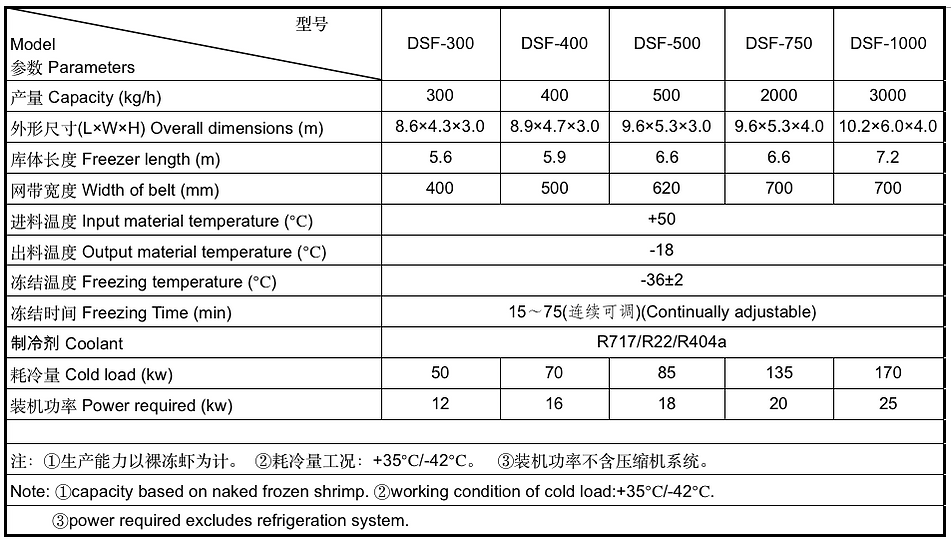

DSF single spiral freezer
Technical Parameters
Screen Shot 2018-08-12 at 4.38.47 PM.png
SSF Dual spirals freezer
Technical Parameters
Screen Shot 2018-08-12 at 4.45.20 PM.png
HGD Freezer Key components
input (separately)
input (separately)
press to zoom
input (tray)
input (tray)
press to zoom
SFF dual spiral freezer
SFF dual spiral freezer
press to zoom
Fan
Fan
press to zoom
Spiral net belt
Spiral net belt
press to zoom
Evaporator
Evaporator
press to zoom
Other Freezers
